Microscopy

Field Emission Scanning Electron Microscope (FE-SEM)

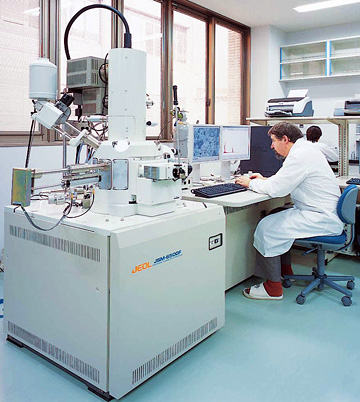

Field Emission Scanning Electron Microscope (FE-SEM)

The field emission scanning electron microscope enables the clear observation of the minute surface irregularity of solid samples beyond the reach of an optical microscope by scanning the surface with narrow electron beams after rendering it electrically conductive through the deposition of metal or carbon and by detecting and measuring the intensity of reflected electrons and secondary electrons.
Model
JSM-6500F
Manufacture
JEOL Ltd.
Operating condition
Resolution of SEI 1.0 nm (@ 15 kV)
Acceleration voltage 0.1 to 30 kV
Probe current 1 pA to 200 nA (@ 15 kV)
Available specimen holders for slide glasses, mini-core samples and micro fossils
Lab.
X-Ray & SEM

Stereomicroscope

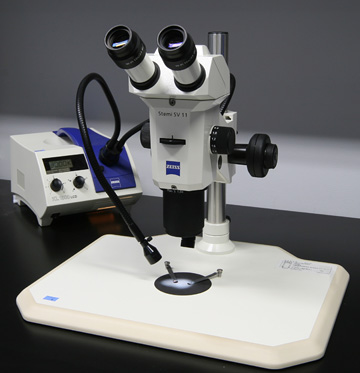

Stereomicroscope

-
Model
Stemi SV11 (SV11-R), Stemi SV6, Stemi 2000
Manufacture
Carl Zeiss MicroImaging Japan
Operating condition
Stemi SV11
Stereo Body Telescope design
Switchable click stop between 0.6× - 6.6× magnification.
Objective: Planachromat S 1.0×, WD = 86 mm, for 4 microscopes
Planachromat S 0.63×, WD = 140 mm, for 1 microscope
(Other objectives are also available)
Double iris diaphragm
Tube Binocular tube
Eye pieces: ×10/23 forcusable with eyecup
Total Magnification 6 - 66× for 4 microscopes
5 - 41.5× for 1 microscope
Stage Type N (large base: 450×350 mm) for 4 microscopes
Heavy stand with arms for large specimen (1 microscope)
Light Sources SCHOTT KL 1500 (15V/100W)

Stemi SV6
Stereo Body Telescope design
Switchable click stop between 0.8× - 5× magnification.
Objective: Achromat S 1.0×, WD = 90 mm
(Other objectives are also available)
Tube Binocular tube
Eye pieces: ×10/21 forcusable with eyecup
Total Magnification 8 - 50×
Light Sources SCHOTT KL 200 (8V/20W)

Stemi 2000
Stereo Body Greenough design
Switchable click stop between 0.6× - 6.6× magnification.
Front lens: Achromat S 1.0×, WD = 92 mm, for 3 microscopes
Achromat S 1.6×, WD = 48 mm, for 1 microscope
(Other objectives are also available)
Tube Binocular tube
Eye pieces: ×10/23 forcusable with eyecup
Total Magnification 6.5× - 50× for 3 microscpes; 10.4-80× for 1 microscope
Light Sources SCHOTT KL 1500 (15V/100W)
Lab.
X-Ray & SEM

Color laser microscope

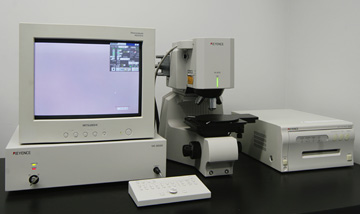

Color laser microscope

-
Model
VK-8550
Manufacture
Keyence Corporation
Operating condition
VK-8550 × 1 microscope
Output Analog RGB (1024×768 pixels), SCSI-II
Magnification on 15 inch monitor 200 to 2000×
Minimum resolution 0.01 um for horizontal and vertical measurement
Display resolution 962 × 729 pixels (colour), 1024 × 768 pixels (monochrome)
Frame memory 1024×768×8 bit×3 Frames (colour), 1024×768×8 bit (monochrome), 1024×768×20 bit (height)
Frame rate 6 Hz (colour), 9 Hz (monochrome), 1 kHz (line or film thickness)
Light source for observation 50 W halogen lamp, 3000 K colour temperature
Light Sources for measurement 685 nm Semiconductor laser, 0.45 mW output
Lab.
X-Ray & SEM

Digital microscope

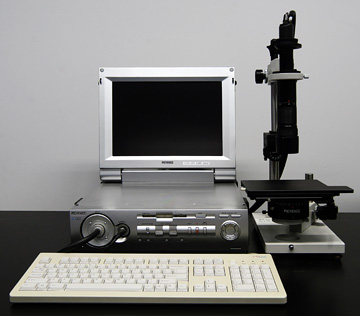

Digital microscope

-
Model
VH-8000
Manufacture
Keyence Corporation
Operating condition

Keyence Digital HF Microscope System

CCD resolution 2.1 mega pixels
Stage 2 dimensional movable, rotatable stage with specimen holder
Coaxial focusing drive
Travel:
Coarse: 28 mm/1 rev., Fine: approx. 0.1 mm/1 rev.
Light source Epi-illumination/simplified transmitted illumination

Transmission microscope
Utilized for observation of thin section of rock samples and picking up micro fossils from sediment samples

Lab.
X-Ray & SEM

CCD Color Digital Camera System

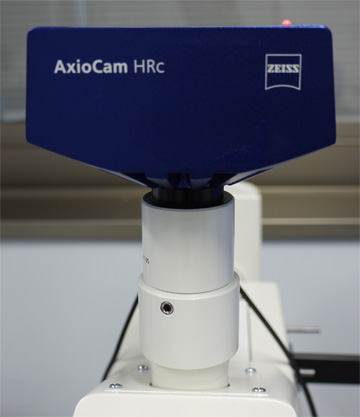

CCD Color Digital Camera System

The high-resolution camera for digital documentation can be attachable with inverted fluorescence microscope, polarization microscope and universal photo microscope
Model
AxioCam HR
Manufacture
Carl Zeiss MicroImaging Japan
Operating condition
CCD Color Digital Camera System: Zeiss AxioCam HR
CCD resolution 1300 × 1030 = 1.3 mega pixels
Selectable resolution 260 × 206 (binning 5×5, RGB), 324 × 256 (binning 4×4, B/W)
432 × 342 (binning 3×3, RGB), 650 × 512 (binning 2×2, B/W)
1300 × 1030 (single exposure), 1300 × 1030 (Co-Site-Sampling)
2600 × 1060 (Co-Site-Sampling), 3900 × 3090 (Co-Site-Sampling)
Optical Interface C-Mount
Max. file size per image 71 MB @ 3900 × 3030 at 3 × 14 bit colour
Operating system Windows 2000 + AxioVision 3.1
Lab.
X-Ray & SEM

Film camera

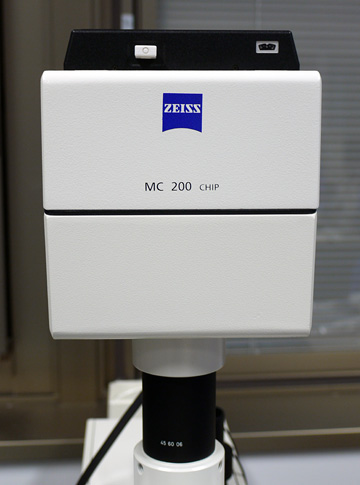

Film camera

Film camera for analogue documentation can be attachable with inverted fluorescence microscope, polarization microscope and universal photo microscope
Model
MC200 CHIP
Manufacture
Carl Zeiss MicroImaging Japan
Operating condition
Zeiss MC200 CHIP
Camera attachment For 35 mm and M 4" × 5" film camera
Film sensitivity ISO 6 to 25000
Film cassette For 35 mm Mot DX is attached
Lab.
X-Ray & SEM

Universal Photo Microscope

Universal Photo Microscope

-
Model
Axiophoto2 (PH2-FL/Ph/DIC)
Manufacture
Carl Zeiss MicroImaging Japan
Operating condition
Stand Axioplan2
Coaxial focusing drive
Coarse drive: 1 revolution approx. 2 mm
Fine drive: 1 revolution approx. 0.2 mm, 1 graduation mark approx. 2 um
Reflector turret
Eight reflector positions.
Available reflectors are shown in Table 1.
Tube Axiophoto2 photomodule
Digital camera Zeiss AxioCam HR and 35mm film cameras are available.
Eye pieces: ×10/25, forcusable
with eyeglass protective rubber, no reticles
Stage Rotary, centerable mechanical stage with specimen holder
Rotatable about 240°
Overall lifting range: 25 mm
Objective Nosepiece 6 positions
Objective lens: see Table 2.
Condenser Achromatic-aplanatic universal condenser 0.9 H D Ph DIC
Illuminators 12 V/100W halogen lamp (HAL100 lamp housing) for transmitted light
100W mercury vapor short-arc lamp (HBO100 lamp housing) for epi-fluorescence
  Axiophoto 2 Photo module for Axioplan2
  • Two film cameras (35 mm) are operated via PC
  • Center-weighted averaging/spot metering
  • Possibility of fixing the automatic exposure time for comparison photos
  • Multiple exposures
  • Exposure corrections: 3 exposure values; maximum correction amount: 1/3 exposure value
  • Decimal display of exposure time, countdown during exposure
  • Automatic auto-bracketing with pre-selected correction
  • Film sensitivity: ISO 25-6400
  • Projection of data and reference scale
  • CCD digital camera and TV camera can be attached.
Lab.
X-Ray & SEM

Inverted Microscope

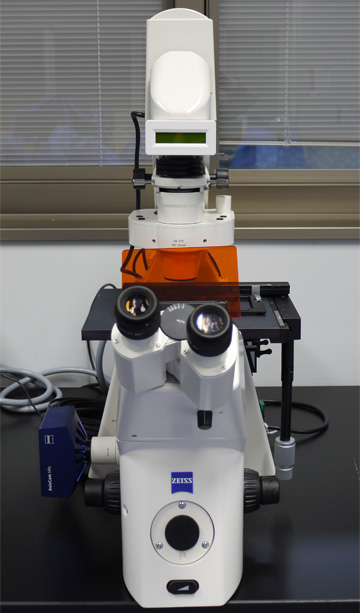

Inverted Microscope

-
Model
Axiovert (V200M-FL/PH/DIC) + AxioCam HR
Manufacture
Carl Zeiss MicroImaging Japan
Operating condition
Axiovert V200M × 2 microscopes
Stand All the major microscope functions are motorized.
Coaxial focusing drive
Coarse drive: 1 revolution approx. 5 mm
Fine drive: 1 revolution approx. 0.1 mm, 1 graduation mark approx. 1 um
Digital camera Zeiss AxioCam HR is available.
Tube Binocular phototube
Eye pieces: ×10/23, forcusable
with eyeglass protective rubber, no reticle
Stage Specimen stage with object guide (right), and universal mounting frame M Overall lifting range: 10 mm
Objective Nosepiece 6 positions
Objective lens: see Table 2.
Condenser LD condenser 0.55, 6 positions: H, Ph1, Ph2, Ph3, DIC, DIC mot
Illuminators 12V/100W halogen lamp (HAL100 lamp housing) for transmitted light
100W mercury vapor short-arc lamp (HBO100 lamp housing) for epi-fluorescence
Lab.
X-Ray & SEM

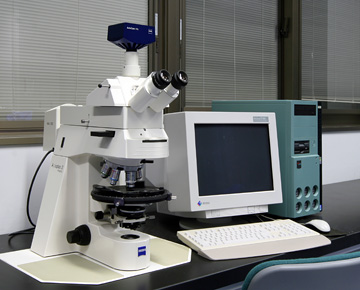

Polarizing Microscope

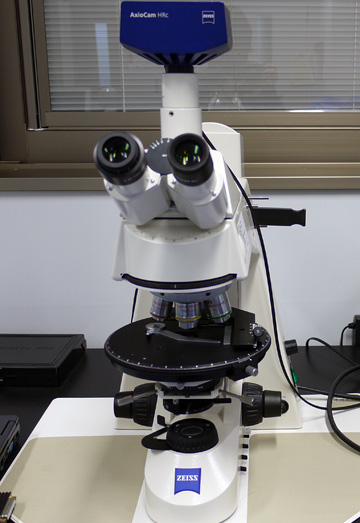

Polarizing Microscope

-
Model
Axioskop 40 A Pol, Axioplan2 Imaging Pol (P2IPOL-T/R2), Axiolab Pol (LABPOL-T/RS), Axiolab Pol (LABPOL-T1),
Manufacture
Carl Zeiss MicroImaging Japan
Operating condition
Axioskop 40 A Pol
Stand Coaxial focusing drive
Coarse drive: 1 revolution approx. 5 mm
Fine drive: 1 revolution approx. 0.5 mm, 1 graduation mark approx. 5 um
Reflector turret
Five reflector positions.
Available reflectors are shown in Table 1.
Tube Binocular photo tube (100:100)
Digital camera Zeiss AxioCam HR is available
Eye pieces: E-PL ×10/20, forcusable
with eyeglass protective rubber, reticle (cross line micrometer 10:100)
Stage Rotary stage Pol with click stop
Attachable mechanical stage Pol
Overall lifting range: approx. 24 mm
Objective Nosepiece 6 positions Pol, with 5× H W 0.8 and 1× H D DIC M27
Objective lens: see Table 2.
Condenser Achromatic-aplanatic condenser 0.24/d=10.7 with front lens 0.9/d=2.9 Pol and bright-field insert
Illuminators 12V/35W halogen lamp for transmitted light
12V/100W halogen lamp (HAL100 lamp housing) for incident light

Axioplan2 Imaging Pol
Stand Axioplan2
Coaxial focusing drive
Coarse drive: 1 revolution approx. 2 mm
Fine drive: 1 revolution approx. 0.2 mm, 1 graduation mark approx. 2 um
Reflector turret
Eight reflector positions. Available reflectors are shown in Table 1. Slider with analyzer with rotary lambda - plate
Tube Binocular phototube with sliding prism (100/100/50:50)
Digital camera
Zeiss AxioCam HR is available at one of two microscopes
The attachment Zeiss MC200 chip for 35 mm and 4” 5” films is mounted on another.
Eye pieces: ×10/23, forcusable
with eyeglass protective rubber, reticle (crossline)
Intermediate tube Pol with quartz depolarizer
Stage Rotary stage Pol with specimen holder
Overall lifting range: 25 mm
Objective Nosepiece 6 positions
Objective lens: see Table 2.
Condenser Achromatic-aplanatic condenser 0.24/d=10.7 with front lens 0.9/d=2.9 Pol and bright-field insert
Illuminators 12V/100W halogen lamp (HAL100 lamp housing) for transmitted and incident light × 2
Lab.
X-Ray & SEM
