Core Logging

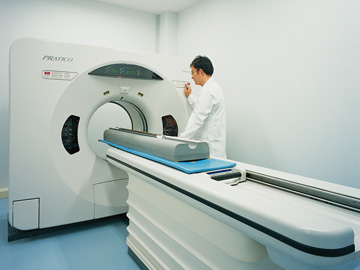

X-ray CT Scanner

X-ray CT Scanner

The X-ray CT scanner three-dimensionally analyzes the fault structure, sedimentary structure, etc. of core samples without destroying them. By applying medical X-ray CT scan techniques, X-ray see-through images and computer tomography (CT) images can be generated.
Model
PRATICO
Manufacture
Hitachi Medical Corporation
Operating condition
Scanning Operation Normal, Scano-Gram, Volume
Spatial Resolution 0.31 mm/pixel
Scanning time 0.6, 1, 2, 4 sec.
Field of view 160・・80 mmマ・/td>
Thickness 1, 2, 3, 5, 7, 10 ホシm
Tube voltage 100 kV, 120 kV, 130 kV
Tube Ampere 25・・00 mA
Lab.
Core Logging

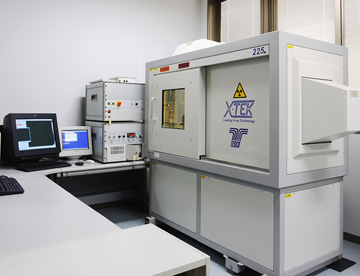

Micro-Focus X-Ray CT Scanner

Micro-Focus X-Ray

This system is used for detailed inspection of objects by adopting a powerful X-Ray tube ツツツVoltage of 225 kv. Therefore, high resolution 3-dimensional CT images are obtained.
Model
HMX225-ACTIS+3
Manufacture
Tesco Corporation
Operating condition
Tube voltage 225 kv
Tube current 1 mA
Focal spot size 5 ホシm
Detector 150 mmマ・mage intensifier
Max. sample size 130 mmマ・ H: 150 mm
Spatial Resolution 127 ホシm (130 mmマ・, 2 ホシm (2 mmマ・
Lab.
Core Logging

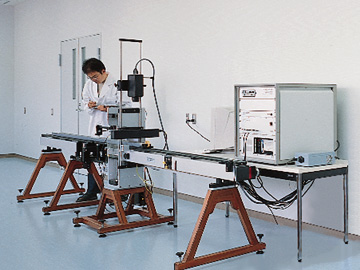

Multi Sensor Core Logger

Multi Sensor Core Logger

The multi-sensor core logger has been developed to measure the physical properties of core samples without destruction. By moving a core sample past sensors using a conveyor belt-like mechanism, it is possible to continuously acquire physical property data, density, P-wave propagation velocity, magnetic susceptibility, electrical resistivity, etc.
Model
MSCL-S, -V
Manufacture
Geotek Ltd.
Operating condition
Track System High accuracy shaft drive
Core ditection laser caliper (accuracy 0.5 mm)
Gamma ray attenuation source 137 Cs, collimator 2.5 or 5 mm, density resolution <1%
P-wave velocity ARC transducers, centre frequency 230 MHz, accuracy 50 ns
Magnetic susceptibility Bartington loop sensor 60-150 mm diameter, or point sensor (on split cores) giving 5% calibration accuracy over two ranges; 1x10-6 & 10x10-6 cgs.
Electrical resistivity Non contact resistivity measurements using a unique double paired coil induction method.
Core imaging Geoscan IV full colour digital linescan imaging system. Produce RGB images and profile data from your cores.
Spectrophotometer Konica Minolta colour spectrophotometer measuring reflectance in the near UV through the visible and into the near IR range (wavelengths 360 - 740 nm).
Lab.
Core Logging

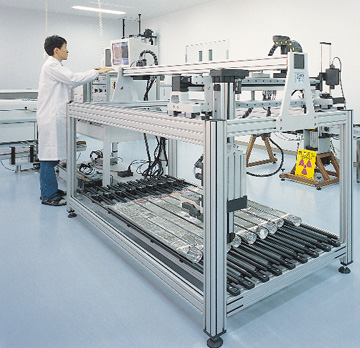

Color Spectrophotometer Sensor System

Color Spectrophotometer Sensor System

Mounted with a color spectrophotometer sensor system, the XYZ-MSCL continuously acquires color spectrum data from core sample sections. With core samples placed side by side and sample length and measurement interval data input, the sensor determines the distance between it and the core surface using laser light and makes measurements while moving horizontally and vertically.
Model
MSCL-XYZ
Manufacture
Geotek Ltd.
Operating condition
Size of integrating sphere 52 mmマ・/td>
Detector silicon photodiode array (dual 40 elements)
Wave length range 360・・40 nm
Wave length pitch 10 nm
Reflectance range 0・・75 %, display resolution 0.01 %
Measurement time approx. 1.5 sec.
Lab.
Core Logging

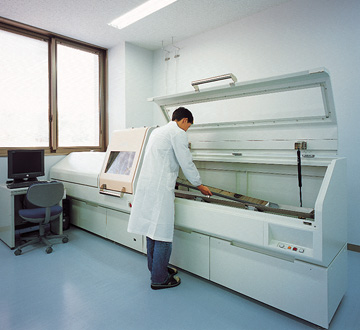

XRF Core Scanner

XRF Core Scanner

The X-ray fluorescence core logger continuously measures the variation in the concentrations of major elements in a core sample by irradiating it with X-rays and analyzing the resulting fluorescence.
Model
JSX-3600 CAZ (TATSCAN-F2)
Manufacture
JEOL縲Ltd.
Operating condition
Measurement mode spot, line, mapping
Tube voltage 50 kV
Tube ampere 1 mA
Beam 0.8 mmマ・or 7 mmマ・/td>
Resolution 1, 2, 3, 5, 7, 10 ホシm
Chamber He gas
Max. sample size 1500テ・50テ・5 mm (Lテ優テ幽)
Publications T. Sakamoto, K. Iijima, S. Sugisaki (2007) TATSCAN-S1, non-destructive diffuse spectroscopic (UV, Visible, and Near infra-red domains) 2-D imaging scanner of sediment/rock cores., Geophysical Research Abstracts, 9, 6616-6616.
Lab.
Core Logging

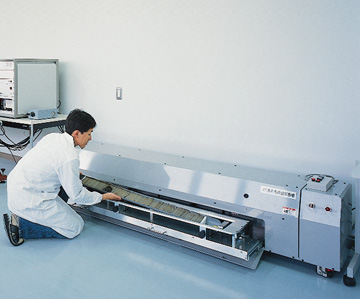

Core image scanner

Core image scanner

-
Model
-
Manufacture
-
Operating condition
Max. sample size 1400テ・00 mm (Lテ邑)
Optical resolution 1600 dpi
Task speed 7.7 msec/line (@ 1600 dpi), 5.1 msec/line (@ 600 dpi)
Bit depth 16 bit each color
Lab.
Core Logging
